Introducing the CT600
Ceiling Tile Unit - Ultra-Quiet 600m³/h for Healthcare Environments
Ceiling-mounted UV-C air purification unit delivering year-round protection for healthcare and commercial spaces. Advanced F7 filtration captures 92-99% of airborne pollen, dust, and allergens—creating a sanctuary environment during peak allergy season (March-September). Patented single-reactor design (UK Patent GB2615993B): air passes through the filter, then through the UV-C reactor chamber destroying 99.9% of airborne bacteria, viruses, and mold. Reactor windows continuously bathe the filter surface with UV-C, preventing pathogen buildup. Ultra-quiet operation (28-34dB—quieter than a whisper) suitable for patient rooms, consultation areas, and offices. High capacity 600m³/h airflow treats rooms up to 100m². Oversized F7 filters last 6-12 months, 9,000-hour UV-C lamps. Winner of BBH 2025 Gold Award for Best Patient Safety Initiative. Designed in collaboration with NHS working group and validated at Aintree University Hospital (84-93% real-world pathogen reduction).
Capacity
600 m3/hr
Weight
30kg (23kg unit + 7kg removable cover)
Dimensions

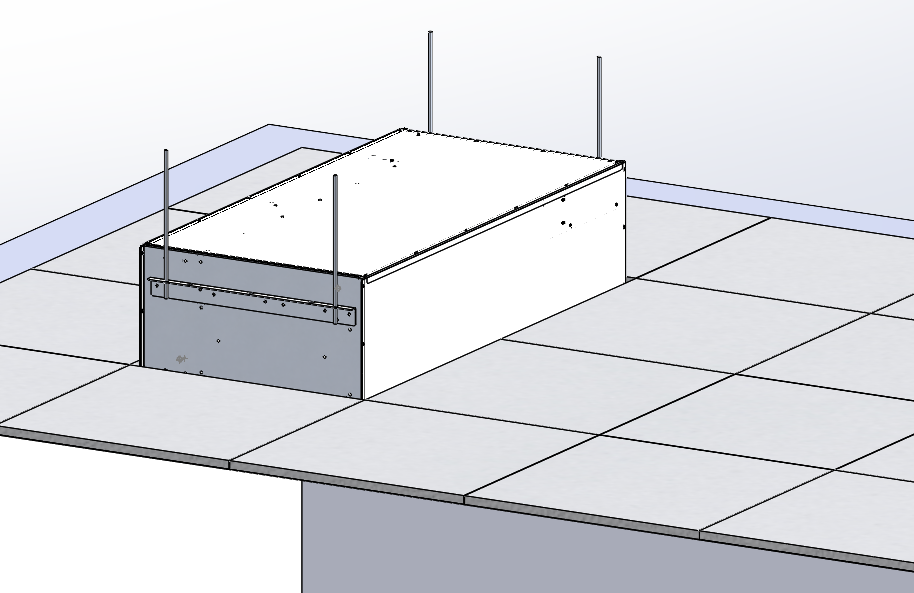

1250mm x 650mm x 350mm overall (Plenum: 575mm x 1275mm x 300mm fits in 2-tile grid, Protrusion: 1250mm x 650mm x 50mm)
UVC Lamps
2 x 75w Phillips Signify
Sound Level
28 to 34 db (min-max speed)
Power
250w at 230v
Available Finishes
- F7 filtration captures 92-99% of pollen, dust, and allergens (ISO 16890)
- Patented single-reactor design with dual protection (UK Patent GB2615993B)
- Reactor destroys 99.9% of airborne pathogens + sanitizes filter via windows
- Year-round protection: allergen reduction + infection control
- Ultra-quiet operation (28-34dB—quieter than a whisper)

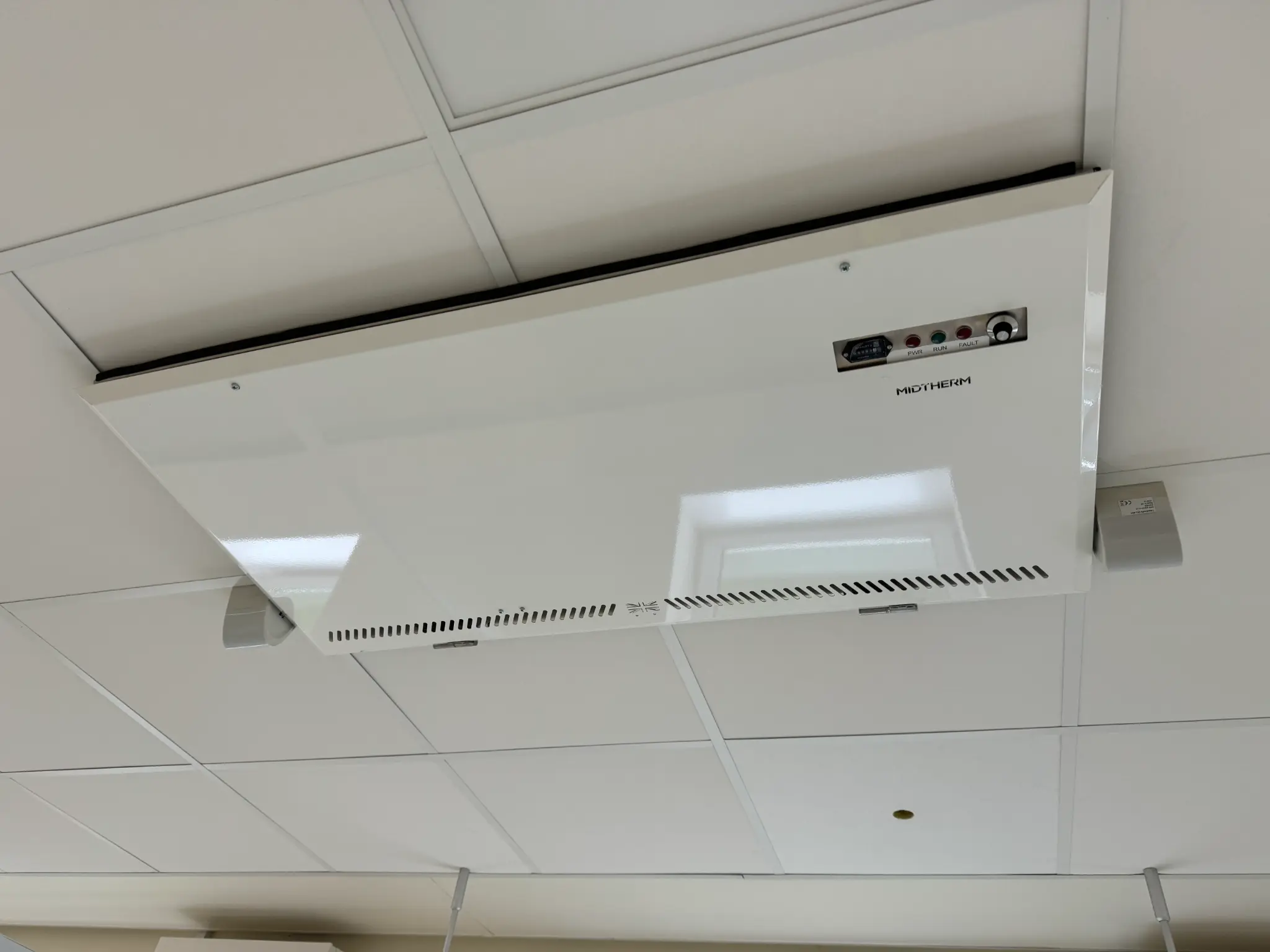

- Discreet ceiling tile installation with only 50mm protrusion
- Easy retrofit into standard 600x600mm ceiling grids
- High volume air processing (600 m3/hr) treats rooms up to 100m²
- Oversized F7 filters last 6-12 months (reduced maintenance frequency)
- Filter fault alert lamp indicates when replacement is needed
- UV-C lamps guaranteed for 9,000 hours (Phillips Signify)
- Drop rod mounting system for below-ceiling maintenance
- HTM03 Compliant for NHS healthcare facilities
- NHS Lab Bio-Validated with 84-93% real-world pathogen reduction
- BBH 2025 Gold Award: Best Patient Safety Initiative (Aintree Hospital deployment)
- UK Patent GB2615993B: Filter sanitisation technology prevents pathogen build-up
- NHS University Hospitals of Liverpool - Aintree Hospital Project (84-93% pathogen reduction)
- Dual protection: F7 filtration + single-reactor UV-C (air + filter sanitization)
- Ideal for hay fever sufferers: 92-99% pollen removal during peak season (March-September)
- Creates "pollen sanctuary" in patient rooms, consultation areas, and waiting rooms
- Designed in collaboration with NHS Working Group for healthcare applications
- Specifically engineered for ultra-quiet operation in patient care environments
- Installed in Multiple NHS Trusts with proven track record
Real-World Case Studies
See the CT600 in action at real NHS facilities:

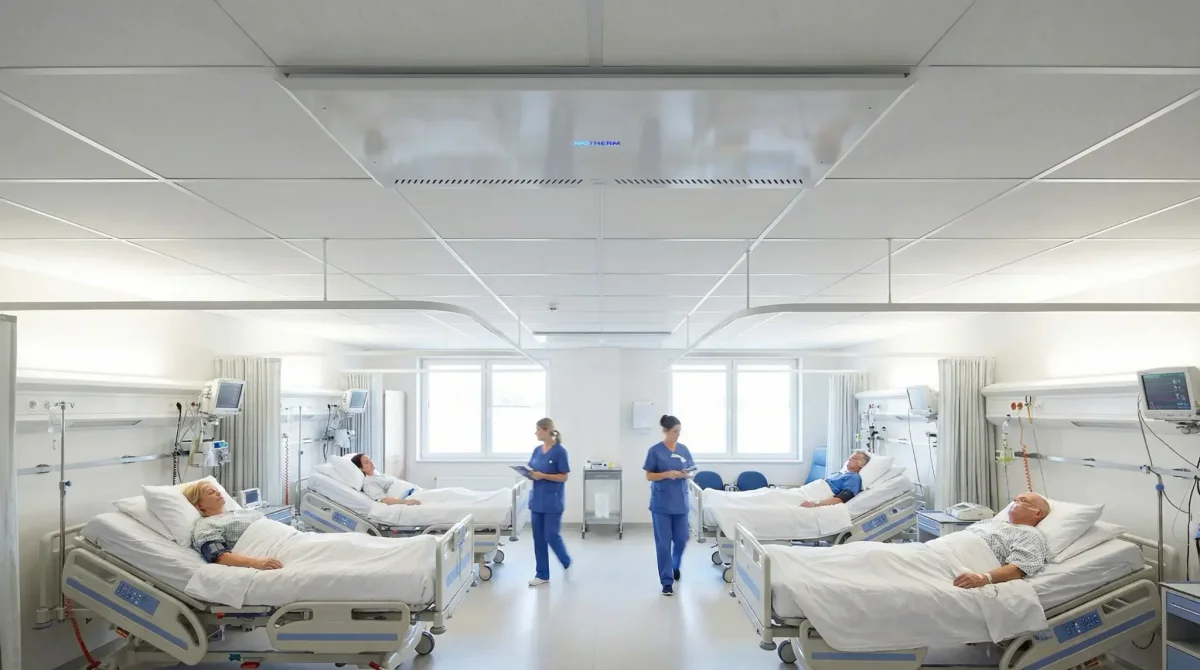

Aintree University Hospital - Liverpool
Independent clinical validation by Professor Tony Fisher demonstrated 84-93% airborne pathogen reduction across four occupied NHS patient rooms. This study won the BBH 2025 Gold Award for Best Patient Safety Initiative.
Read Full Case Study →Common Questions
The CT600 operates at 28-34 dB depending on speed setting—quieter than a library (30 dB) and normal conversation (60 dB). At low speed, it's virtually silent, making it ideal for patient rooms, consultation rooms, and offices.
Yes. The CT600 underwent rigorous bio-validation testing at an NHS laboratory, demonstrating 99.9% pathogen reduction. It was also deployed in the Aintree University Hospital study and won the BBH 2025 Gold Award for Best Patient Safety Initiative.
The CT600 is designed for medium-large spaces with 600m³/h capacity. It has been successfully deployed in smaller rooms at reduced speed settings, achieving ultra-quiet operation below 28dB while maintaining effective air purification.
UV-C lamps are warranted for 9,000 hours of operation. We recommend annual replacement for units running 24/7 to ensure desired performance levels. Replacement lamps are available from stock in limited quantities, with additional stock available within 5-10 days.
Installation & Technical Details
